Aten Technologies KA7240 Aten KA7240 KVM Console

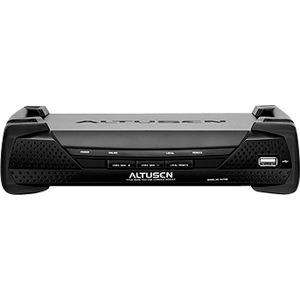

Aten KA7240 KVM Console

by Aten Technologies

Our Price: $1,087.64

Condition: New

Out of Stock.

Submit email address to get In-Stock Alert

Product Information

Manufacturer Part Number: KA7240

Shipping Weight: 5.0 lbs


The KA7240 Console Module offers secure access to the servers in a Matrix KVM Switch (KM0932/KM0532) from a PS/2 or USB console (monitor, keyboard, and mouse) up to 300 meters away. It provides an extra computer port for integration with a computer workstation, enabling users to seamlessly switch between the local computer and the servers in the Matrix KVM Switch. The KA7240 also features an intuitive graphical user interface, the Graphical OSD, with easy-to-use menus and icons that enable easy access and efficient management.

KA7240 has a built-in RS-232 port. Administrators can establish a serial terminal login to the Console Module in order to control the KVM port access for all consoles connected to switch any console can be assigned to access any KVM port from a single interface point. In addition, an automatic skew compensation function corrects color phase and timing errors that occur over long distance transmissions.

Product Details

Product Type: KVM Console

Maximum Operating Distance: 984 ft

USB: Yes

VGA: Yes

Network (RJ-45): Yes

PS/2 Port: Yes

KVM Technology: Analog

Number of Computers Supported: 3

Connectivity Technology: Wired

Green Compliant: Yes

Green Compliance Certificate/Authority: WEEE

Maximum Video Resolution: 1280 x 1024

Graphic Mode: SXGA

Number of Network (RJ-45) Ports: 2

Number of USB Ports: 3

Number of PS/2 Ports: 2

Number of VGA Ports: 1

Form Factor: Rack-mountable

Product Model: KA7240

Manufacturer Website Address: www.aten-usa.com

Package Contents

  • KA7240 KVM Console
  • 1 x KVM Cable
  • 1 x Power Adapter
  • 1 x RS-232 Cable (DB-9F to DB9-F)
  • 1 x Grounding Wire
  • 1 x Rack Mount Kit
  • 1 x User Guide
  • Stacking Brackets
