Gefen, Inc EXT-DVI-1600HD Gefen EXT-DVI-1600HD Video Console/Extender

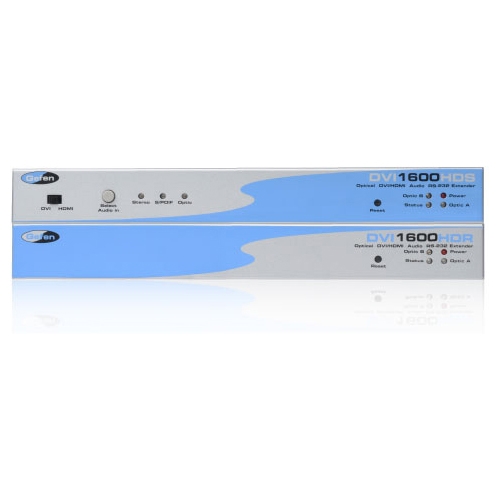

Gefen EXT-DVI-1600HD Video Console/Extender

by Gefen, Inc

ValleySeek is an authorized Gefen Distributor.


Product Information

Manufacturer Part Number: EXT-DVI-1600HD

Shipping Weight: 5.2 lbs


The EXT-DVI-1600HD Video Console/Extender is a solution for extending and managing digital signal up to 300 meters away using multi mode fiber. The EXT-DVI-1600HD Video Console/Extender extends either DVI or HDMI plus audio and RS-232C signals up to 200m away when used with HDMI and up to 2km when used with DVI. It maintains HD video signals up to 1920x1200 with computers and 1080p with hd equipment.

Product Details

Product Type: Video Console/Extender

Maximum Operating Distance: 6562 ft

Media Type Supported: Fiber

Number of Output Devices Supported: 1

Number of Input Devices Supported: 1

Number of DVI Inputs: 1

Connectivity Technology: Wired

Graphics Modes: WUXGA

Green Compliant: Yes

Green Compliance Certificate/Authority: RoHS

Maximum Video Resolution: 1920 x 1200

DVI In: Yes

DVI Out: Yes

Height: 1.2"

Width: 10.3"

Depth: 5.1"

Manufacturer Website Address: www.gefen.com

Input Voltage: 12 V DC

Package Contents

  • EXT-DVI-1600HD Video Console/Extender
  • 1 x 6.ft DVI Video Cable
  • 1 x 6.ft DB9 RS-232 Cable
  • 2 x 12V DC Power Supplies
  • 2 x Sets of Rack Ears
  • 1 x User's Manual
