Gefen VGA Extender LR

Product Information

Manufacturer Part Number: EXT-VGA-141LR

Shipping Weight: 1.75 lbs

Description

Extends any VGA or Component HD Display using a Single CAT-5 Cable up to 330 Feet From Your HD Source

The VGA Extender LR allows users to extend video signals beyond the A/V rack. The VGA Extender Series can be used to extend an analog signal to cover distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension.

Product Details

Product Type: Video Console/Extender

Maximum Operating Distance: 330 ft

Media Type Supported: Twisted Pair

Number of Output Devices Supported: 1

Number of Input Devices Supported: 1

Connectivity Technology: Wired

Graphics Modes: VGA

Green Compliant: Yes

Green Compliance Certificate/Authority: RoHS

Maximum Video Resolution: 1920 x 1200

Twisted Pair Cable Standard: Category 5

Height: 1.0"

Width: 1.0"

Depth: 4.0"

Manufacturer Website Address: www.gefen.com

Standard Warranty: 1 Year Limited

Input Voltage: 5 V DC

Number of Network (RJ-45) Ports: 2

Number of VGA Inputs: 1

Network (RJ-45): Yes

VGA In: Yes

Package Contents

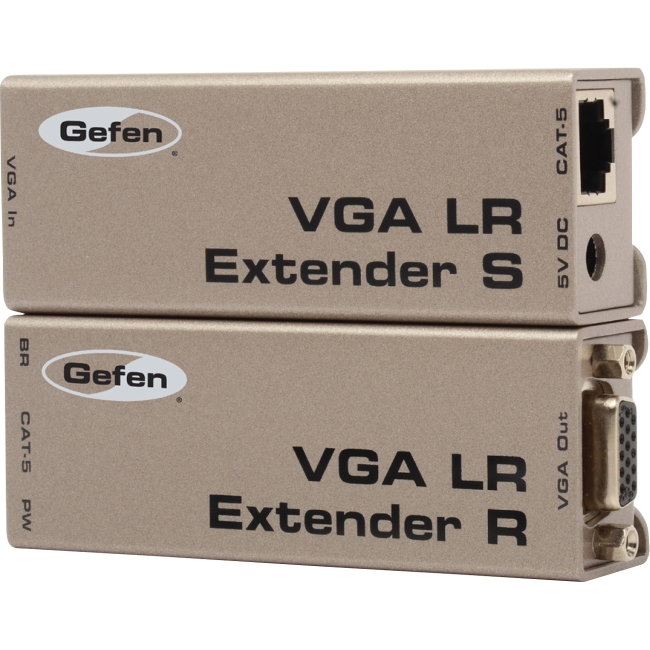

• 1 x VGA Extender S Sender Unit
• 1 x VGA Extender R Receive Unit
• 1 x 6 foot VGA Cable (M-F)
• 1 x 5V DC Power Supply
