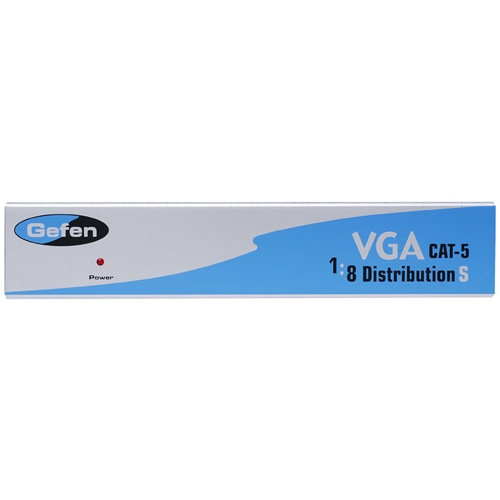

Gefen 1x8 VGA CAT5 Distribution Amplifier
by Gefen, Inc
Product Information
Manufacturer Part Number: EXT-VGA-CAT5-148S
Shipping Weight: 5.2 lbs
Description
The 1x8 VGA CAT5 Distribution Amplifier is the perfect solution for anyone who needs to send one source to multiple displays in remote locations at the same time. The 1x8 VGA CAT5 Distribution Amplifier has eight RJ-45 output connector and one VGA input. The 1x8 VGA CAT5 Distribution Amplifier's RJ-45 connectors are connected to up to eight VGA CAT5 Distribution Amplifier receivers using industry standard CAT5 cables. The receivers can be placed up to 330 feet away from the transmitter.
Product Details
Product Type: Video Swtichbox
Maximum Operating Distance: 330 ft
Media Type Supported: Twisted Pair
Number of Displays Supported: 8
Number of Input Devices Supported: 1
Number of Connectivity (RJ-45) Ports: 1
Device Supported: Computer
Graphics Modes: WUXGA
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Maximum Video Resolution: 1920 x 1200
Connectivity (RJ-45): Yes
Height: 1.8"
Width: 8.5"
Depth: 4.5"
Manufacturer Website Address: www.gefen.com
Package Contents
- 1x8 VGA CAT5 Distribution Amplifier
- 1 x 6 foot VGA cable (M-F)
- 1 x 5V external power supply
