Supermicro Computer, Inc MBD-X8DTN+-F-O Supermicro X8DTN+-F Server Motherboard - Intel - Socket B LGA-1366 - x Retail Pack

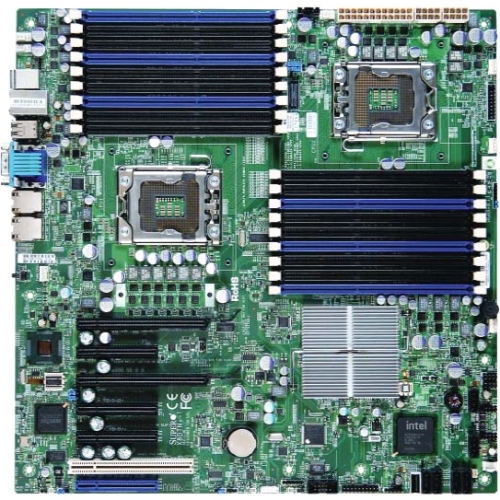

Supermicro X8DTN+-F Server Motherboard - Intel - Socket B LGA-1366 - x Retail Pack

by Supermicro Computer, Inc


Product Information

Manufacturer Part Number: MBD-X8DTN+-F-O

Shipping Weight: 5.65 lbs


1. Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
2. Intel® 5520 (Tylersburg) Chipset
3. Up to 192GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
4. Intel® 82576 Dual-port Gigabit Ethernet Controller
5. 6x SATA2 (3 Gbps) Ports via ICH10R Controller
6. 2 (x8) PCI-E 2.0 (in x16 slots), 2 (x4) PCI-E 2.0 (in x 8 slots), 1 (x4) PCI-E (in x 8 slot), 1 UIO (PCI-E 2.0 x8 slot)
7. Integrated Matrox G200eW Graphics
8. Integrated IPMI 2.0 with KVM and Dedicated LAN

Product Details

Product Type: Server Motherboard

Chipset Manufacturer: Intel

Chipset Model: 5520

Onboard Video: On-board Video Chipset

Memory Technology: DDR3 SDRAM

Processor Socket: Socket B LGA-1366

Form Factor: Enhanced Extended ATX

Processor Supported: Xeon Dual-Core

Total Processor Supported: 2

Maximum Memory: 192 GB

Green Compliant: Yes

Green Compliance Certificate/Authority: RoHS-6

64-bit Processing: Yes

Number of Memory Slots: 18

Graphics Controller Manufacturer: Matrox

Graphics Controller Model: G200eW

Gigabit Ethernet: Yes

Number of SATA Interfaces: 6

QuickPath Interconnect: 6.40 GT/s

RAID Supported: Yes

Number of Total Expansion Slots: 6

Network (RJ-45): Yes

Total Number of USB Ports: 4

PS/2 Port: Yes

Number of PS/2 Ports: 2

Total Number of Onboard USB Ports: 3

Total Number of PCI Express Slots: 5

Processor Technology: Enhanced SpeedStep Technology

Width: 13.7"

Depth: 13.0"

Product Model: X8DTN+-F

Package Type: Retail

Controller Type: Serial ATA/300

Manufacturer Website Address: www.supermicro.com

Package Contents

  • X8DTN+-F Server Motherboard
  • 1 x Manual
  • 1 x I/O Shield
  • 1 x Driver Disk
  • 6 x 57.5CM Sata Flat Cable
  • 1 x 15.7" USB 2.0 2-Port w/Key
  • 1 x 9 pin Serial Port DTK Cable
