Tripp Lite B140-101-WP Tripp Lite B140-101-WP Wallplate Video Console/Extender

Tripp Lite B140-101-WP Wallplate Video Console/Extender

by Tripp Lite


Product Information

Manufacturer Part Number: B140-101-WP

Shipping Weight: 1.05 lbs


The B140-101-WP is a DVI over Cat5 Passive Extender Wallplate kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101-WP is compatible with all operating systems, and is plug and play, with no external power, software or drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect the transmitter unit to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the 110 punchdown jacks on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 100 ft..

Product Details

Product Type: Video Console/Extender

Maximum Operating Distance: 100 ft

Media Type Supported: Twisted Pair

Number of Output Devices Supported: 1

Number of Input Devices Supported: 1

Number of DVI Inputs: 1

Connectivity Technology: Wired

Graphics Modes: UXGA

Green Compliant: Yes

Green Compliance Certificate/Authority: RoHS

Maximum Video Resolution: 1600 x 1200

Twisted Pair Cable Standard: Category 6

DVI In: Yes

DVI Out: Yes

Color: White

Product Model: B140-101

Manufacturer Website Address:

Standard Warranty: 1 Year Limited

Package Contents

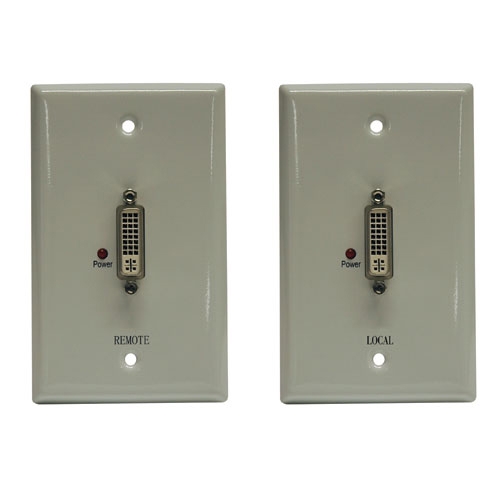

  • B140-101-WP Local Wallplate
  • B140-101-WP Remote Wallplate
  • 110 Punchdown Tool
  • Wallplate Screws
  • Owner's Manual
